도커 컴포스활용 간단한 FTP 서버 설정과 파일 업로드/다운로드 기능을 갖는 스프링 부트 애플리케이션 만들기

---



이번 글을 통해 배워 갈 내용

1.  Docker를 사용한 Alpine FTP 서버 설정
2. 스프링 부트 애플리케이션 개발
3. 포스트맨을 활용한 테스트

---

1. Docker를 사용한 Alpine FTP 서버 설정

먼저, delfer/alpine-ftp-server 이미지를 사용하여

간단한 FTP 서버를 설정합니다



docker-compose.yml 파일을 사용하여 서비스를 구성합니다

두 명의 사용자(one 및 two)를 생성하고,

각각의 홈 디렉터리를 지정하며,

포트 21 및 21000-21010을 매핑하도록 구성하였습니다

version: "3"
services:
  ftp:
    image: delfer/alpine-ftp-server
    restart: always
    ports:
      - "21:21"
      - "21000-21010:21000-21010"
    environment:
      - USERS=one|1234|/home/one|10001 two|1234|/home/two|10002
      - ADDRESS=127.0.0.1
    volumes:
      - ./one:/home/one
      - ./two:/home/two



2. 스프링 부트 애플리케이션 개발

build.gradle.kts기준 commons-net 라이브러리 추가

implementation("commons-net:commons-net:3.10.0")



kotlin 기반

FtpRestController 만들어서 테스트

package com.kimc

import org.springframework.core.io.InputStreamResource
import org.springframework.core.io.Resource
import org.springframework.http.HttpHeaders
import org.springframework.http.HttpStatus
import org.springframework.http.MediaType
import org.springframework.http.ResponseEntity
import org.springframework.web.bind.annotation.*
import org.springframework.web.multipart.MultipartFile
import java.io.IOException
import java.io.InputStream
import java.io.OutputStream
import java.net.URL
import java.nio.file.Files
import java.nio.file.Path
import java.nio.file.StandardCopyOption

@RestController
@RequestMapping("/ftp")
class FtpRestController {
    val port = 21
    val username = "one"
    val password = "1234"
    val host = "localhost"

    @PostMapping("/upload")
    fun uploadFile(@RequestParam("file") file: MultipartFile): ResponseEntity<String> {
        try {
            val remoteFilePath = "/${file.originalFilename}"
            uploadToFtp(file.inputStream, remoteFilePath)
            return ResponseEntity.status(HttpStatus.CREATED).body("File uploaded successfully: $remoteFilePath")
        } catch (e: IOException) {
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).body("Error uploading file")
        }
    }

    @GetMapping("/{filename}")
    fun downloadFileHttp(@PathVariable filename: String): ResponseEntity<Resource> {
        try {
            val ftpUrl = "ftp://${username}:${password}@${host}:${port}/$filename"
            val urlConnection = URL(ftpUrl).openConnection()
            val inputStream: InputStream = urlConnection.getInputStream()

            val resource = InputStreamResource(inputStream)

            val headers = HttpHeaders()
            headers.add(HttpHeaders.CONTENT_DISPOSITION, "attachment; filename=$filename")

            return ResponseEntity.ok()
                    .headers(headers)
                    .contentType(MediaType.APPLICATION_OCTET_STREAM)
                    .body(resource)
        } catch (e: IOException) {
            return ResponseEntity.status(500).build()
        }
    }

    @GetMapping("/download/{filename}")
    fun downloadFile(@PathVariable filename: String): ResponseEntity<InputStreamResource> {
        val remoteFilePath = "/one/$filename"
        val localFilePath = "downloaded_$filename"

        try {
            val inputStream = downloadFromFtp(remoteFilePath)
            Files.copy(inputStream, Path.of(localFilePath), StandardCopyOption.REPLACE_EXISTING)

            val resource = InputStreamResource(Files.newInputStream(Path.of(localFilePath)))

            val headers = HttpHeaders()
            headers.add(HttpHeaders.CONTENT_DISPOSITION, "attachment; filename=$filename")

            return ResponseEntity.ok()
                    .headers(headers)
                    .body(resource)
        } catch (e: IOException) {
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).build()
        }
    }

    private fun uploadToFtp(inputStream: InputStream, remoteFilePath: String) {
        val ftpUrl = "ftp://${username}:${password}@${host}:${port}$remoteFilePath"
        val urlConnection = URL(ftpUrl).openConnection()
        val outputStream: OutputStream = urlConnection.getOutputStream()

        inputStream.copyTo(outputStream)
        outputStream.close()
    }

    private fun downloadFromFtp(remoteFilePath: String): InputStream {
        val ftpUrl = "ftp://${username}:${password}@${host}:${port}$remoteFilePath"
        val urlConnection = URL(ftpUrl).openConnection()
        return urlConnection.getInputStream()
    }
}

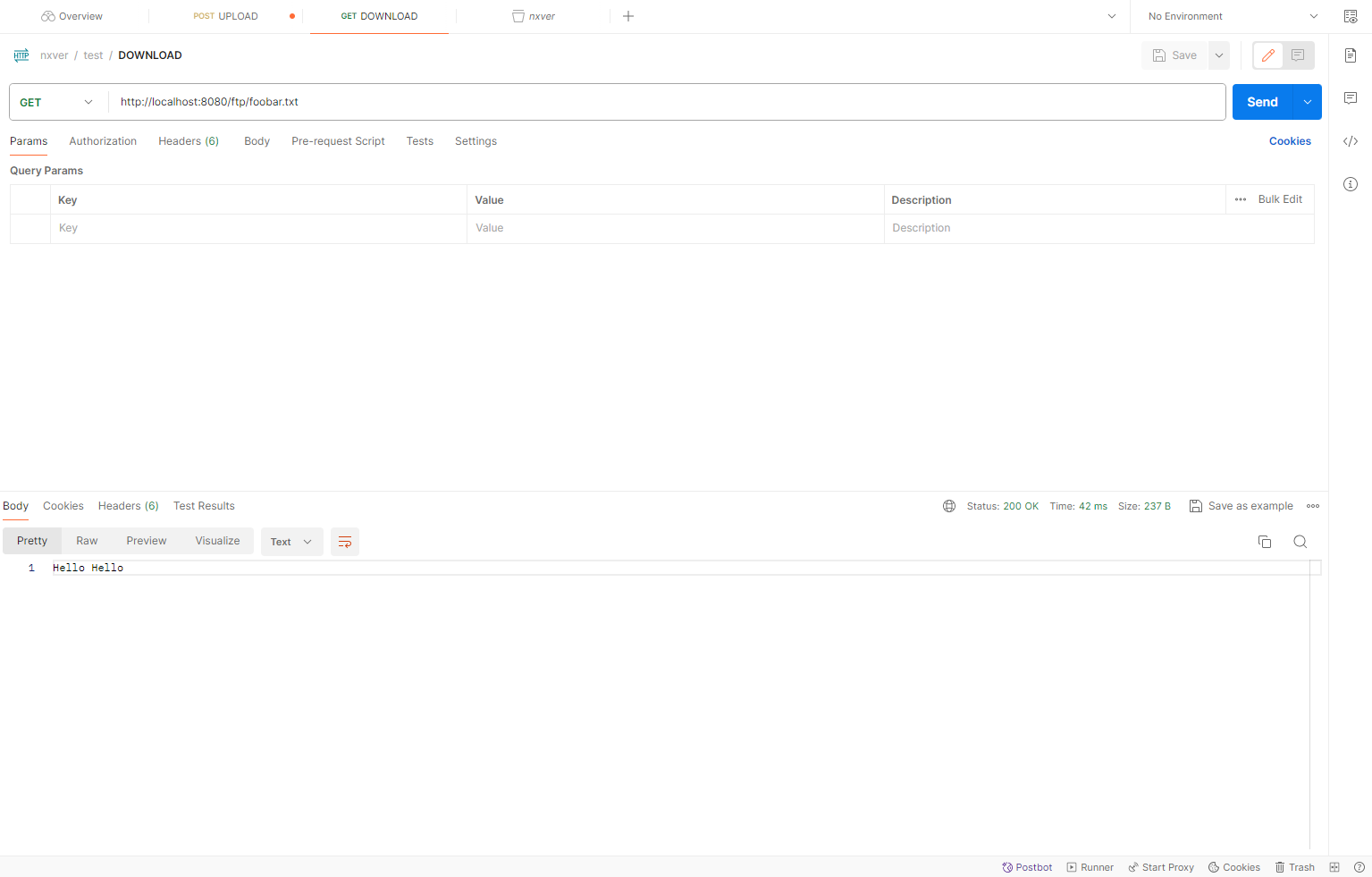

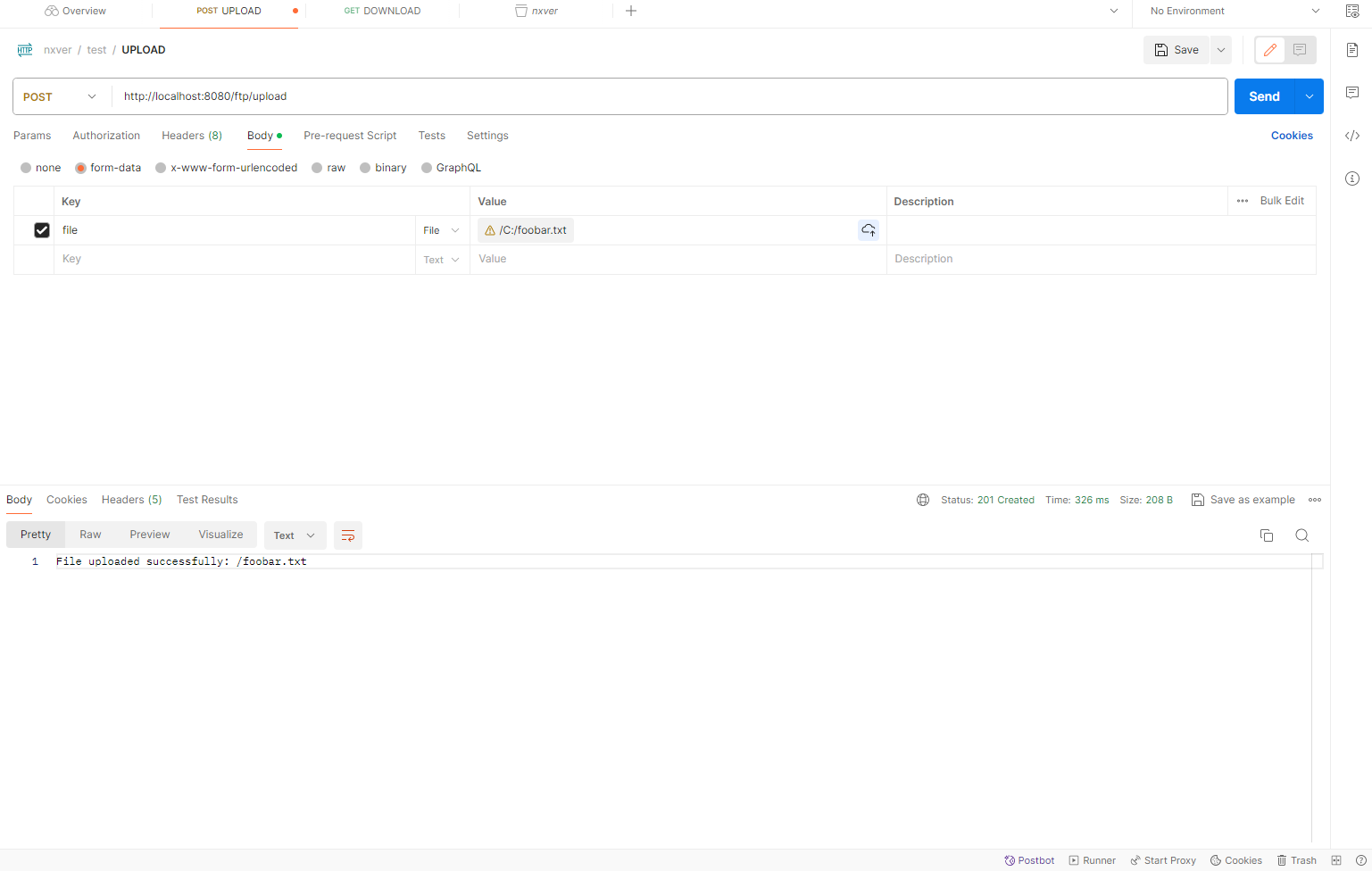

3. 포스트맨을 활용한 테스트





4. 코드를 활용한 테스트



라이브러리 추가

testImplementation("org.mockftpserver:MockFtpServer:3.1.0")





테스트 코드 작성

package com.kimc

import org.junit.jupiter.api.Test
import org.springframework.boot.test.context.SpringBootTest
import java.io.File
import java.io.OutputStream
import java.net.URL
import java.nio.file.Files
import java.nio.file.Paths

@SpringBootTest
class FtpClientSpringApplicationTests {

    val port = 21
    val username = "one"
    val password = "1234"

    @Test
    fun contextLoads() {
    }

    @Test
    fun givenRemoteFile_whenDownloading_thenItIsOnTheLocalFilesystem() {
        val ftpUrl = "ftp://${username}:${password}@localhost:${port}/foobar.txt"
        val urlConnection = URL(ftpUrl).openConnection()
        val inputStream = urlConnection.getInputStream()
        Files.copy(inputStream, File("download_test2.txt").toPath())
        inputStream.close()
        assert(File("download_test2.txt").exists())
        File("download_test2.txt").delete()
    }

    @Test
    fun givenLocalFile_whenUploadingIt_thenItExistsOnRemoteLocation() {
        val localFilePath = "C://foobar.txt"
        val remoteFilePath = "/file.txt"

        val ftpUrl = "ftp://${username}:${password}@localhost:${port}${remoteFilePath}"
        val urlConnection = URL(ftpUrl).openConnection()
        val outputStream: OutputStream = urlConnection.getOutputStream()
        Files.copy(Paths.get(localFilePath), outputStream)

        outputStream.close()

        // Optionally, you can add assertions here to verify the success of the upload
        val remoteFileUrl = "ftp://${username}:${password}@localhost:${port}${remoteFilePath}"
        val remoteUrlConnection = URL(remoteFileUrl).openConnection()
        val remoteInputStream = remoteUrlConnection.getInputStream()
        val remoteFileContent = remoteInputStream.reader().readText()
        remoteInputStream.close()

        assert(remoteFileContent.isNotEmpty())
    }

}





성공 :)

---
