프로메테우스, 그라파나, 집킨으로 스프링 부트 모니터링 하는 한가지 방법

Monitoring Spring Boot 3.15 with Prometheus, Grafana, and Zipkin with docker compose



스프링 부트를 위해서 초간단 모니터링 시스템 구축하는 방법입니다

도커 컴포즈를 활용해서 빠르게 구축했습니다

---



이번 글을 통해 배워 갈 내용

1. Prometheus 설명
2. Grafana 설명
3. Zipkin 설명
4. 샘플 서비스 구조
5. compose.yml
6. prometheus.yml
7. Post-Service 구조
8. Comment-Service 구조

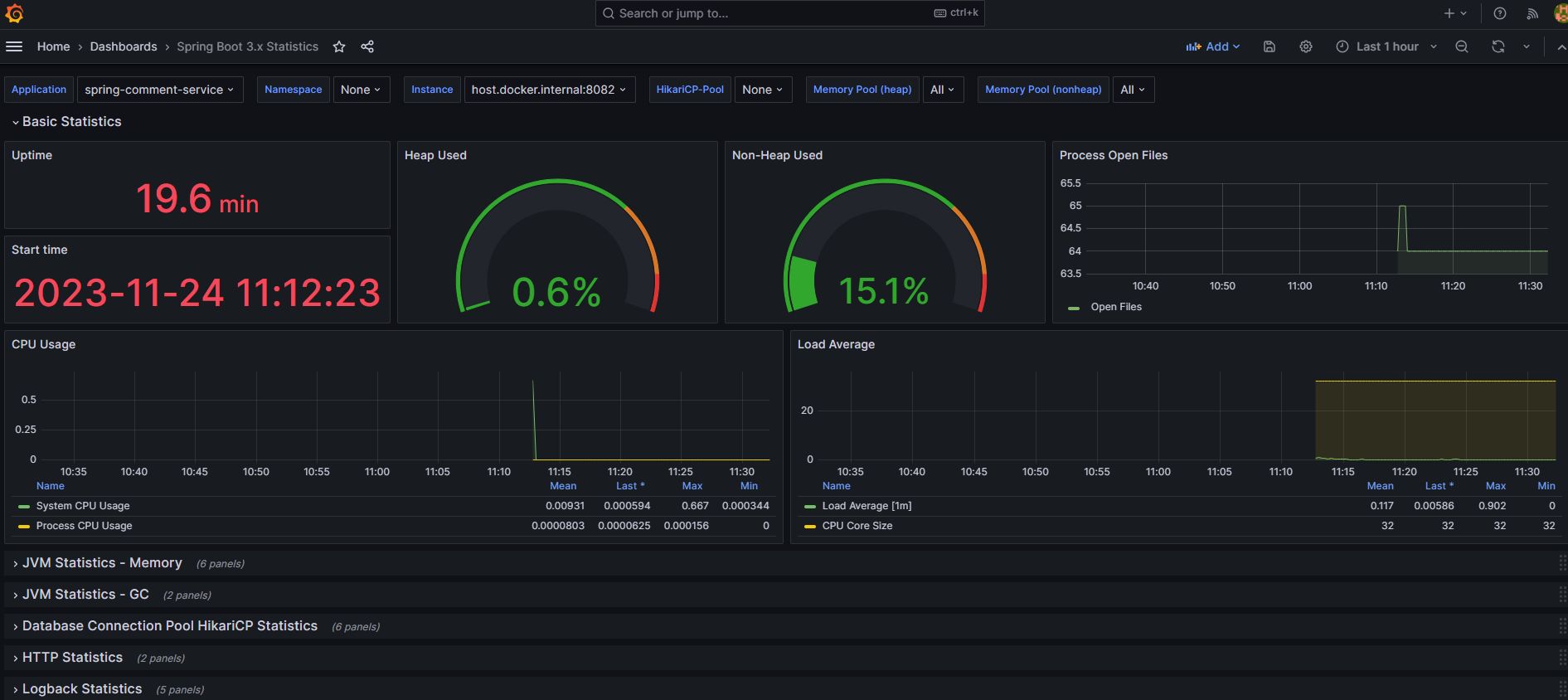

9. 샘플 서비스 모니터링

---

Prometheus 설명

한 줄 요약
Prometheus는 메트릭 수집, 알림, 시각화, 서비스 디스커버리등을 제공하는 오픈소스 모니터링 툴



특징
시계열 데이터: 프로메테우스는 시계열로 데이터를 저장
자체 쿼리언어: PromQL이라는 자체 쿼리 언어 사용
데이터 수집 방법: HTTP를 통해 메트릭을 수집하며 push와 pull 방식지원
서비스디스커버리: 동적으로 서비스 디스커버리를 하며 클라우드 환경에서 자동으로 타깃을 찾고 모니터링도 가능
알림과 경고: 알림과 경고 시스템 제공
UI: 웹 UI와 DashBoard 제공





---

Grafana 설명

한 줄 요약
데이터 시각화와 모니터링 그리고 분석을 위한 오픈소스 플랫폼



특징
다양한 데이터소스 지원: Prometheus, InfluxDB, MySQL, PostgreSQL 등 다양한 데이터 소스와 호환
대시보드 기능: 사용자는 복잡한 쿼리를 통해 데이터를 시각화하고, 맞춤형 대시보드를 생성가능
경고 시스템: Grafana는 임계값을 기반으로 하는 경고 시스템을 제공
플러그인 확장성: 다양한 플러그인을 통해 기능을 확장가능
보안 기능: 사용자 관리, 데이터 소스에 대한 액세스 제어 등의 보안 기능을 제공

---

Zipkin 설명

한 줄 요약
분산추적 시스템으로 시스템 성능의 문제를 진단하고 해결하기 위해서 마이크로서비스에서 서비스 간에 연결을 추적하는 데 사용



특징
분산 추적: Zipkin은 분산된 서비스 환경에서 데이터 요청의 흐름을 추적하고 시각화해서 네트워크 지연, 병목 현상 및 오류를 식별가능
시각화 도구: 사용자 친화적인 대시보드를 통해 요청 흐름과 성능 메트릭스를 시각화
경량 프로토콜: Zipkin은 경량 데이터 전송 프로토콜을 사용하여 시스템에 부담을 최소화
다양한 언어 및 프레임워크 지원: Java, C#, JavaScript, Python 등 다양한 프로그래밍 언어와 프레임워크를 지원
확장성: 대규모 시스템에도 적용할 수 있도록 설계돼있으며 수집된 데이터를 다양한 저장소 옵션에 저장가능



---

샘플 서비스 구조

아래와 같이 서버들을 만들겠습니다

Post-Service localhost:8080
Comment-Service localhost:8082
Prometheus localhost:9090
Grafana localhost:3000
Zipkin localhost:9411



Post-Service에서는

GET /api/v1/posts

GET /api/v1/posts/{id}

를 통해

포스트 전체 리턴,

포스트상세(댓글리스트) 리턴

을 합니다



Comment-Service에서는

GET /api/v1/comments?postId={아이디}

를 통해

포스트아이디값으로 댓글 리스트를 리턴합니다



Post-Service는 댓글 리스트 값을 호출 시

Comment-Service를 Feign Client를 활용해서 호출합니다

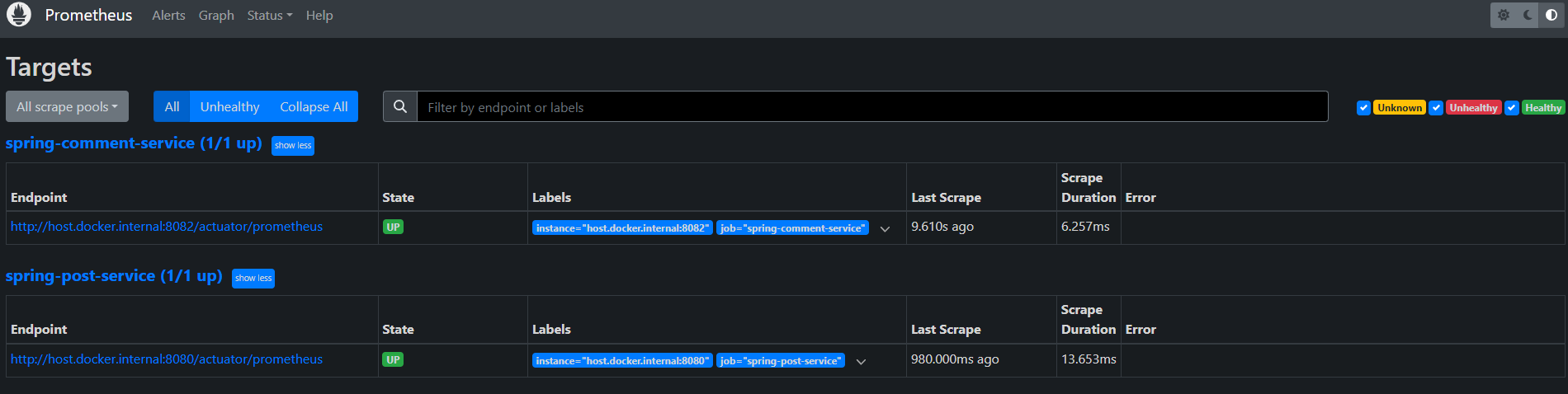

Prometheus는 Post-Service, Comment-Service를 /actuator/prometheus 로 연결

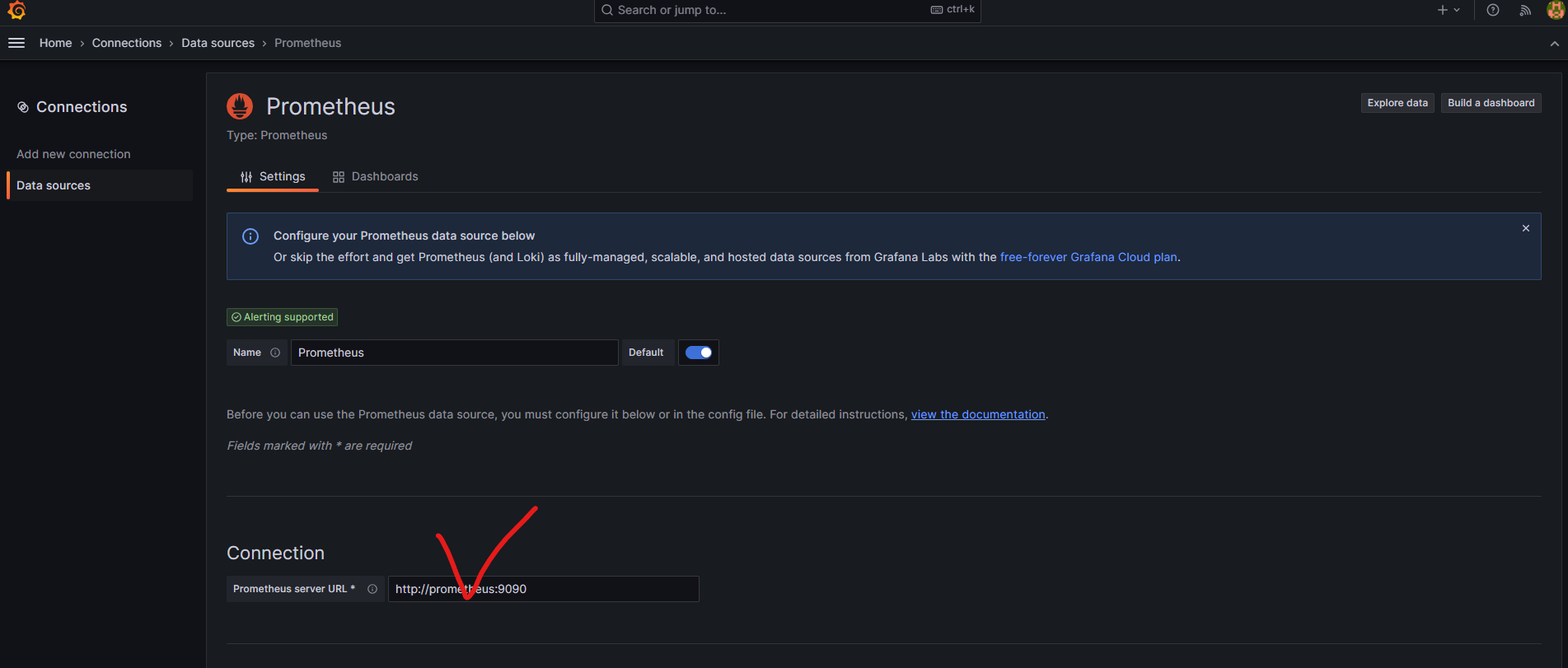

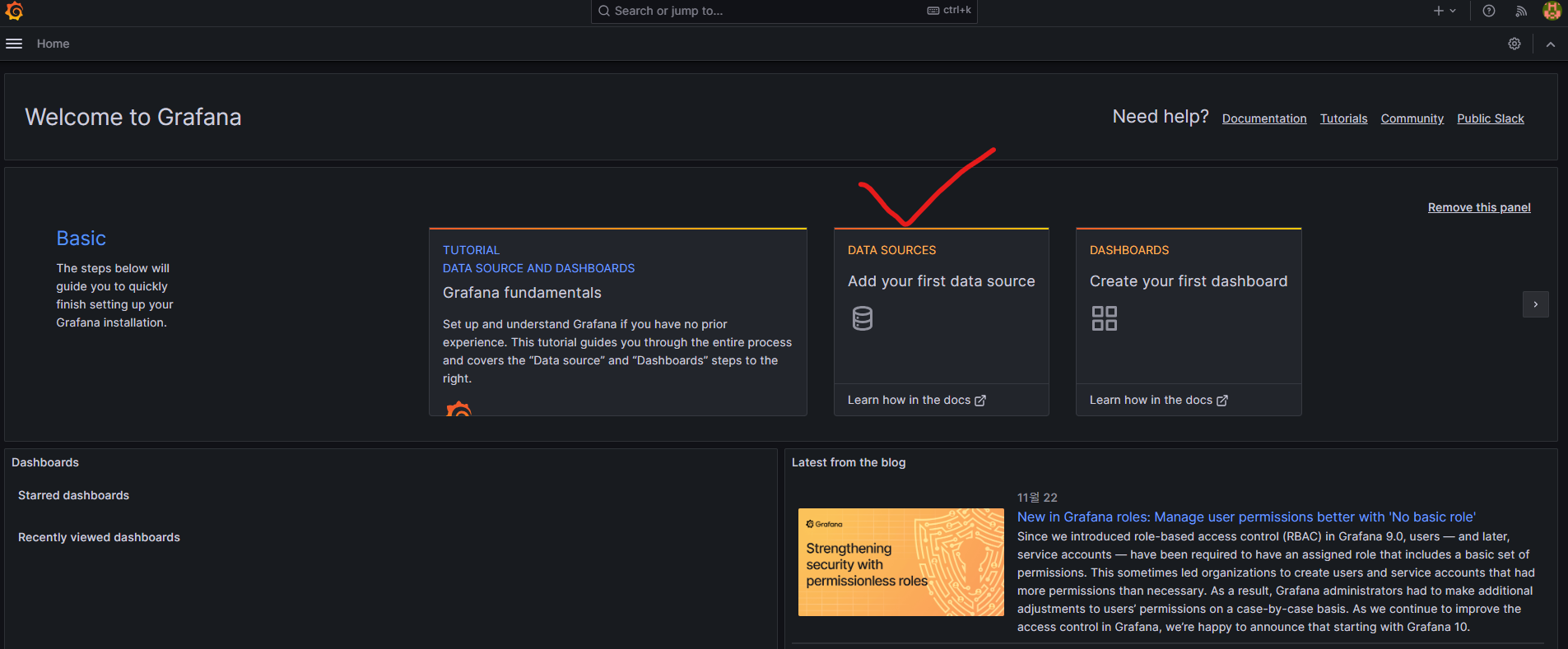

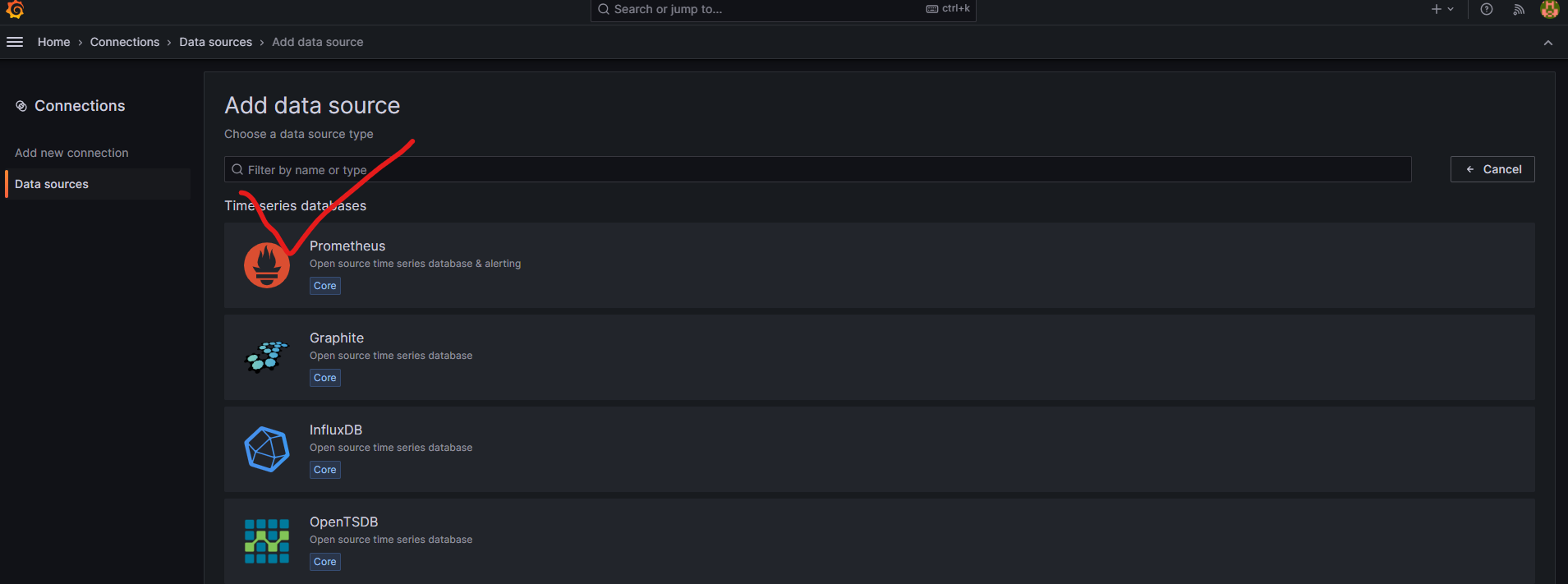

grafana는 Prometheus로부터 Metrics를 연결

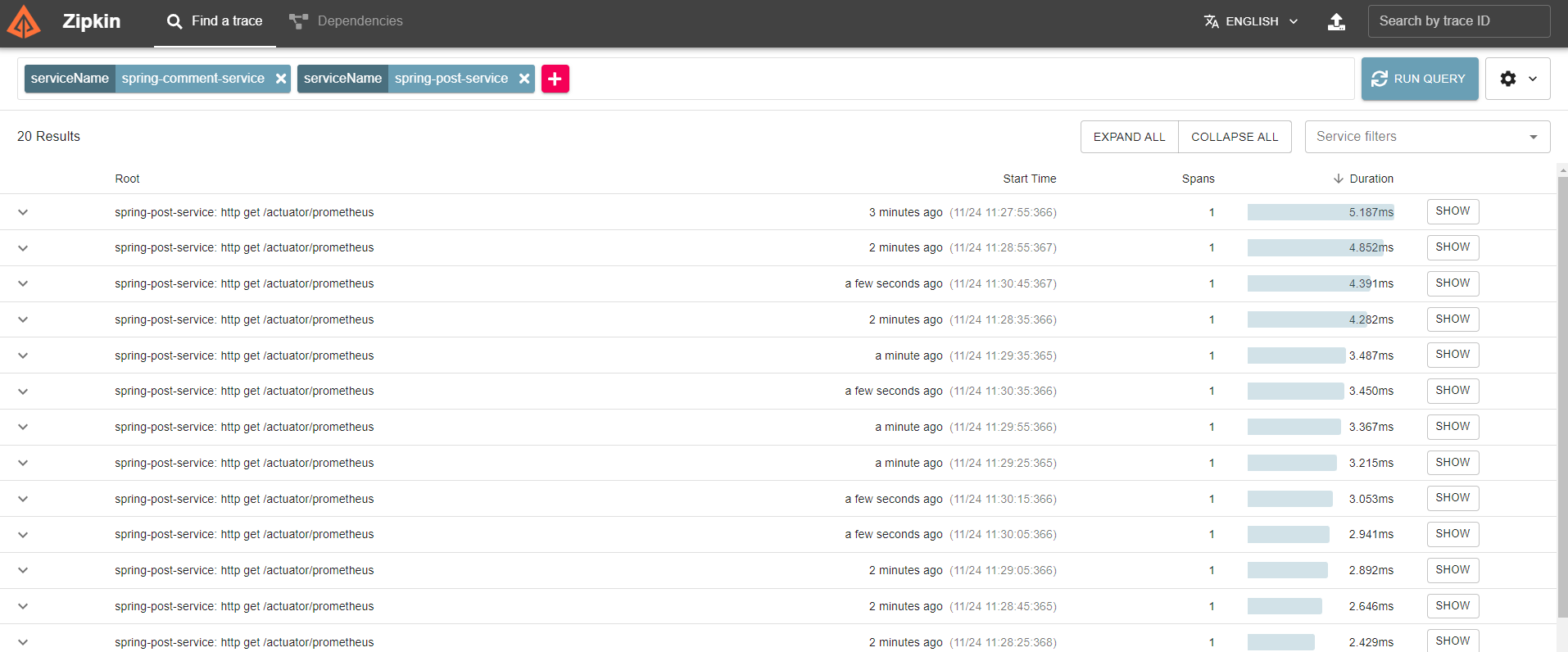

Zipkin Post-Service, Comment-Service에서 api/v2/spans 로 연결

되어 있습니다

---

compose.yml

도커 컴포즈를 사용해서 실행을 하였습니다

도커 컴포즈의 경우 아래 글을 참조해서 설치해 주시면 됩니다
https://codemasterkimc.tistory.com/689

우분투에 도커 컴포스 설치 하는 한가지 방법



compose.yml 파일입니다

프로젝트 루트 혹은 원하는 위치에 배치하시면 됩니다

version: '3'
services:

  zipkin:
    container_name: zipkin-service
    image: openzipkin/zipkin:latest
    restart: always
    ports:
      - "9411:9411"

  prometheus:
    container_name: prometheus-service
    image: prom/prometheus
    restart: always
    extra_hosts:
      - host.docker.internal:host-gateway
    command:
      - --config.file=/etc/prometheus/prometheus.yml
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml
    ports:
      - "9090:9090"

  grafana:
    container_name: grafana-service
    image: grafana/grafana
    ports:
      - "3000:3000"

  post-service:
    container_name: spring-post-service
    image: post-service:0.0.1-SNAPSHOT
    ports:
      - "8080:5001"
    environment:
      - SPRING_PROFILES_ACTIVE=prod
      - ZIPKIN_TRACING_ENDPOINT=http://zipkin:9411/api/v2/spans

  comment-service:
    container_name: spring-comment-service
    image: comment-service:0.0.1-SNAPSHOT
    ports:
      - "8082:5002"
    environment:
      - SPRING_PROFILES_ACTIVE=prod
      - ZIPKIN_TRACING_ENDPOINT=http://zipkin:9411/api/v2/spans



---

prometheus.yml

볼륨 설정으로 인해서

compose.yml과 같은 위치에 배치하시면 됩니다

global:
  scrape_interval: 10s
  evaluation_interval: 10s

scrape_configs:
  - job_name: "spring-post-service"
    metrics_path: /actuator/prometheus
    static_configs:
      - targets: ['host.docker.internal:8080']

  - job_name: "spring-comment-service"
    metrics_path: /actuator/prometheus
    static_configs:
      - targets: [ 'host.docker.internal:8082' ]





---

Post-Service 구조

수정된 파일들은 아래와 같습니다

pom.xml

Comment.java

CommentFeignClient.java

Post.java

PostController.java

PostService.java

application.yml

application-prod.yml





pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.1.5</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>post-service</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>post-service</name>
    <description>post-service</description>
    <properties>
        <java.version>21</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>io.micrometer</groupId>
            <artifactId>micrometer-tracing-bridge-brave</artifactId>
        </dependency>
        <dependency>
            <groupId>io.zipkin.reporter2</groupId>
            <artifactId>zipkin-reporter-brave</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
            <version>4.0.4</version>
        </dependency>
        <dependency>
            <groupId>io.micrometer</groupId>
            <artifactId>micrometer-registry-prometheus</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <image>
                        <builder>paketobuildpacks/builder-jammy-base:latest</builder>
                    </image>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>



Comment.java

package com.example.postservice;

import java.io.Serial;
import java.io.Serializable;

public class Comment implements Serializable {
    @Serial
    private static final long serialVersionUID = 1L;

    private int id;
    private String text;
    private int postId;

    public Comment(int id, String text, int postId) {
        this.id = id;
        this.text = text;
        this.postId = postId;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getText() {
        return text;
    }

    public void setText(String text) {
        this.text = text;
    }

    public int getPostId() {
        return postId;
    }

    public void setPostId(int postId) {
        this.postId = postId;
    }

    @Override
    public String toString() {
        return "Comment{" +
                "id=" + id +
                ", text='" + text + '\'' +
                ", postId=" + postId +
                '}';
    }
}



CommentFeignClient.java

package com.example.postservice;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;

import java.util.List;

@FeignClient(value = "comment-service", url = "http://host.docker.internal:8082/api/v1/comments")
public interface CommentFeignClient {

    @GetMapping("")
    List<Comment> findCommentsByPostId(@RequestParam int postId);

}



Post.java

package com.example.postservice;

import java.io.Serial;
import java.io.Serializable;
import java.util.List;

public class Post implements Serializable {
    @Serial
    private static final long serialVersionUID = 2L;

    private int id;
    private String title;
    private String body;
    private List<Comment> comments;

    public Post(int id, String title, String body, List<Comment> comments) {
        this.id = id;
        this.title = title;
        this.body = body;
        this.comments = comments;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getTitle() {
        return title;
    }

    public void setTitle(String title) {
        this.title = title;
    }

    public String getBody() {
        return body;
    }

    public void setBody(String body) {
        this.body = body;
    }

    public List<Comment> getComments() {
        return comments;
    }

    public void setComments(List<Comment> comments) {
        this.comments = comments;
    }

    @Override
    public String toString() {
        return "Post{" +
                "id=" + id +
                ", title='" + title + '\'' +
                ", body='" + body + '\'' +
                ", comments=" + comments +
                '}';
    }
}



PostController.java

package com.example.postservice;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
@RequestMapping("/api/v1/posts")
public class PostController {

    private final PostService postService;

    public PostController(PostService postService) {
        this.postService = postService;
    }

    @GetMapping("")
    public List<Post> findAllPosts() throws InterruptedException {
        return postService.findAllPost();
    }

    @GetMapping(path = "/{id}")
    public Post findPostByIdWithComments(@PathVariable int id) throws InterruptedException {
        return postService.findPostByIdWithComments(id);
    }

}



PostService.java

package com.example.postservice;

import io.micrometer.tracing.annotation.NewSpan;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
@Slf4j
public class PostService {

    private final CommentFeignClient commentFeignClient;

    public PostService(CommentFeignClient commentFeignClient) {
        this.commentFeignClient = commentFeignClient;
    }

    @NewSpan(value = "post-service-findAllPost-method-span")
    public List<Post> findAllPost() throws InterruptedException {
        Thread.sleep(500);
        //log.info("find all posts...");
        return List.of( new Post(1, "SampleTitle", "SampleBody", null));
    }

    @NewSpan(value = "post-service-getPostWithComments-span")
    public Post findPostByIdWithComments(int id) {
        List<Comment> comments = commentFeignClient.findCommentsByPostId(id);
        return new Post(id, "SampleTitle", "SampleBody", comments);
    }
}



application.yml

spring:
  profiles:
    active: ${SPRING_PROFILES_ACTIVE}



application-prod.yml

server:
  port: 5001

spring:
  application:
    name: spring-post-service

management:
  zipkin:
    tracing:
      endpoint: ${ZIPKIN_TRACING_ENDPOINT}
  tracing:
    sampling:
      probability: 1.0
  endpoints:
    web:
      exposure:
        include: health, prometheus, metrics
  metrics:
    tags:
      application: ${spring.application.name}

logging:
  pattern:
    level: "%5p [${spring.application.name:},%X{traceId:-},%X{spanId:-}]"











---

Comment-Service 구조

수정된 파일들은 아래와 같습니다

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.1.5</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>comment-service</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>comment-service</name>
    <description>comment-service</description>
    <properties>
        <java.version>21</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>io.micrometer</groupId>
            <artifactId>micrometer-tracing-bridge-brave</artifactId>
        </dependency>
        <dependency>
            <groupId>io.zipkin.reporter2</groupId>
            <artifactId>zipkin-reporter-brave</artifactId>
        </dependency>

        <dependency>
            <groupId>io.micrometer</groupId>
            <artifactId>micrometer-registry-prometheus</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <image>
                        <builder>paketobuildpacks/builder-jammy-base:latest</builder>
                    </image>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>



Comment.java

package com.example.demo;

import java.io.Serializable;
import java.io.Serial;

public class Comment implements Serializable {
    @Serial
    private static final long serialVersionUID = 1L;

    private int id;
    private String text;
    private int postId;

    public Comment(int id, String text, int postId) {
        this.id = id;
        this.text = text;
        this.postId = postId;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getText() {
        return text;
    }

    public void setText(String text) {
        this.text = text;
    }

    public int getPostId() {
        return postId;
    }

    public void setPostId(int postId) {
        this.postId = postId;
    }

    @Override
    public String toString() {
        return "Comment{" +
                "id=" + id +
                ", text='" + text + '\'' +
                ", postId=" + postId +
                '}';
    }
}



CommentController.java

package com.example.demo;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
@RequestMapping("/api/v1/comments")
public class CommentController {

    private final CommentService commentService;

    public CommentController(CommentService commentService) {
        this.commentService = commentService;
    }

    @GetMapping("")
    public List<Comment> findCommentsByPostId(@RequestParam int postId) {
        return commentService.findCommentsByPostId(postId);
    }

}

CommentService.java

package com.example.demo;

import io.micrometer.tracing.annotation.NewSpan;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
@Slf4j
public class CommentService {

    private List<Comment> comments = List.of(
            new Comment(1, "포스트 1", 1),
            new Comment(2, "포스트 2", 1),
            new Comment(3, "포스트 3", 2),
            new Comment(4, "포스트 4", 2),
            new Comment(5, "포스트 5", 3)
    );

    @NewSpan(value = "comment-service-findCommentsByPostId-span")
    public List<Comment> findCommentsByPostId(int postId) {
        return comments.stream().filter(comment -> comment.getPostId() == postId).toList();
    }

}



application.yml

spring:
  profiles:
    active: ${SPRING_PROFILES_ACTIVE}



application-prod.yml

server:
  port: 5002

spring:
  application:
    name: spring-comment-service

management:
  zipkin:
    tracing:
      endpoint: ${ZIPKIN_TRACING_ENDPOINT}
  tracing:
    sampling:
      probability: 1.0
  endpoints:
    web:
      exposure:
        include: health, prometheus, metrics
  metrics:
    tags:
      application: ${spring.application.name}
logging:
  pattern:
    level: "%5p [${spring.application.name:},%X{traceId:-},%X{spanId:-}]"









---

샘플 서비스 모니터링



스프링 이미지들을 정상적으로 빌드하고

mvn spring-boot:build-image



도커 컴포즈 세팅을 실행합니다

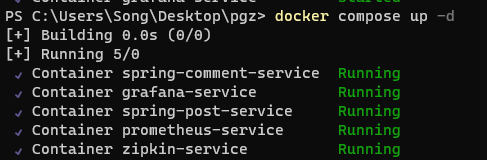

docker compose up -d







먼저 프로메테우스를 확인합니다

---



http://127.0.0.1:9090/targets





post-service와

comment-service 모두 State가 Up 인 것을 확인 가능합니다

---

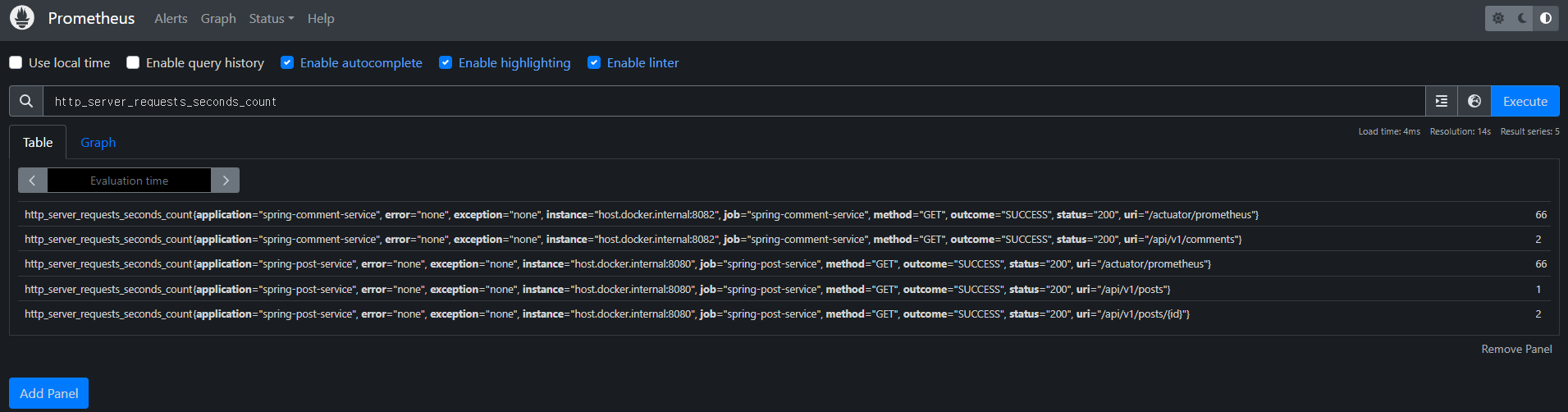

http://127.0.0.1:9090/graph



API 호출과 횟수를 확인하였습니다

---



그다음 그라파나를 확인합니다

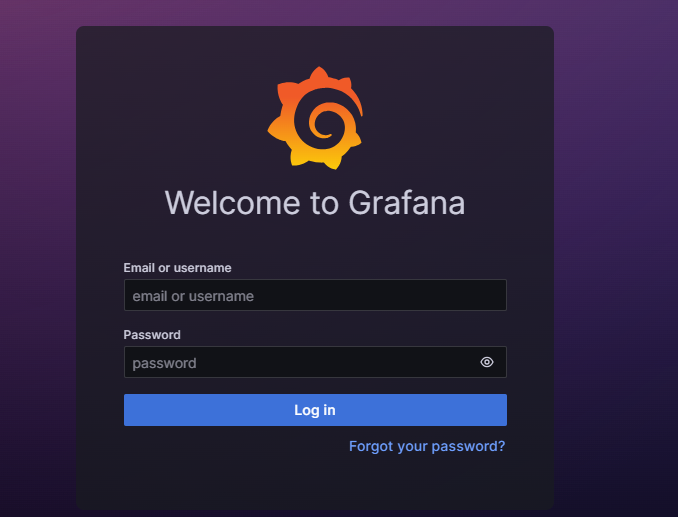

http://127.0.0.1:3000/login





admin

admin

을 입력해서 로그인 한 다음

비밀번호를 변경하거나 skip을 합니다



데이터 소스 추가



프로메테우스 선택



컨테이너에서 접속하는 프로메테우스 주소 입력

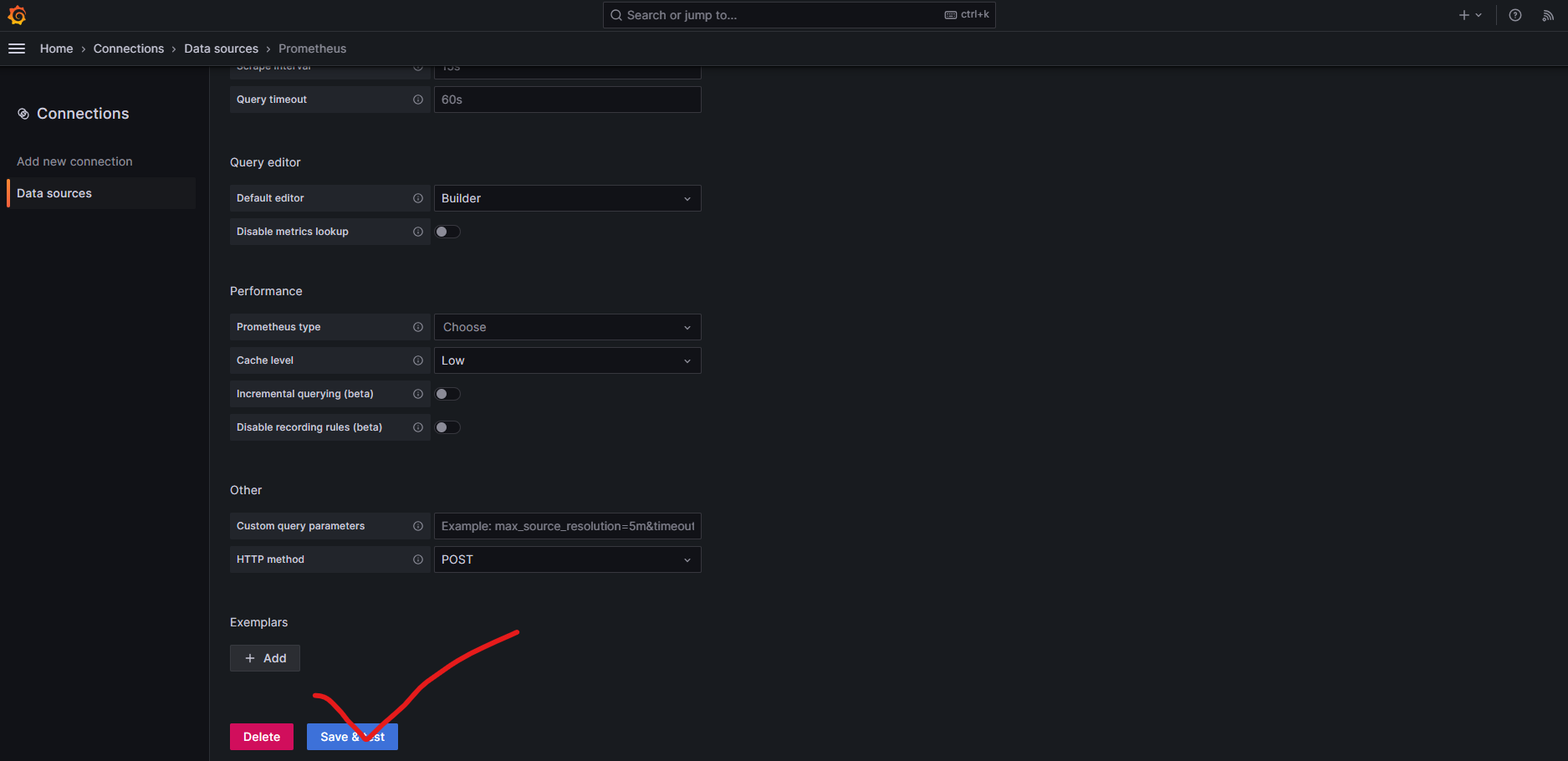

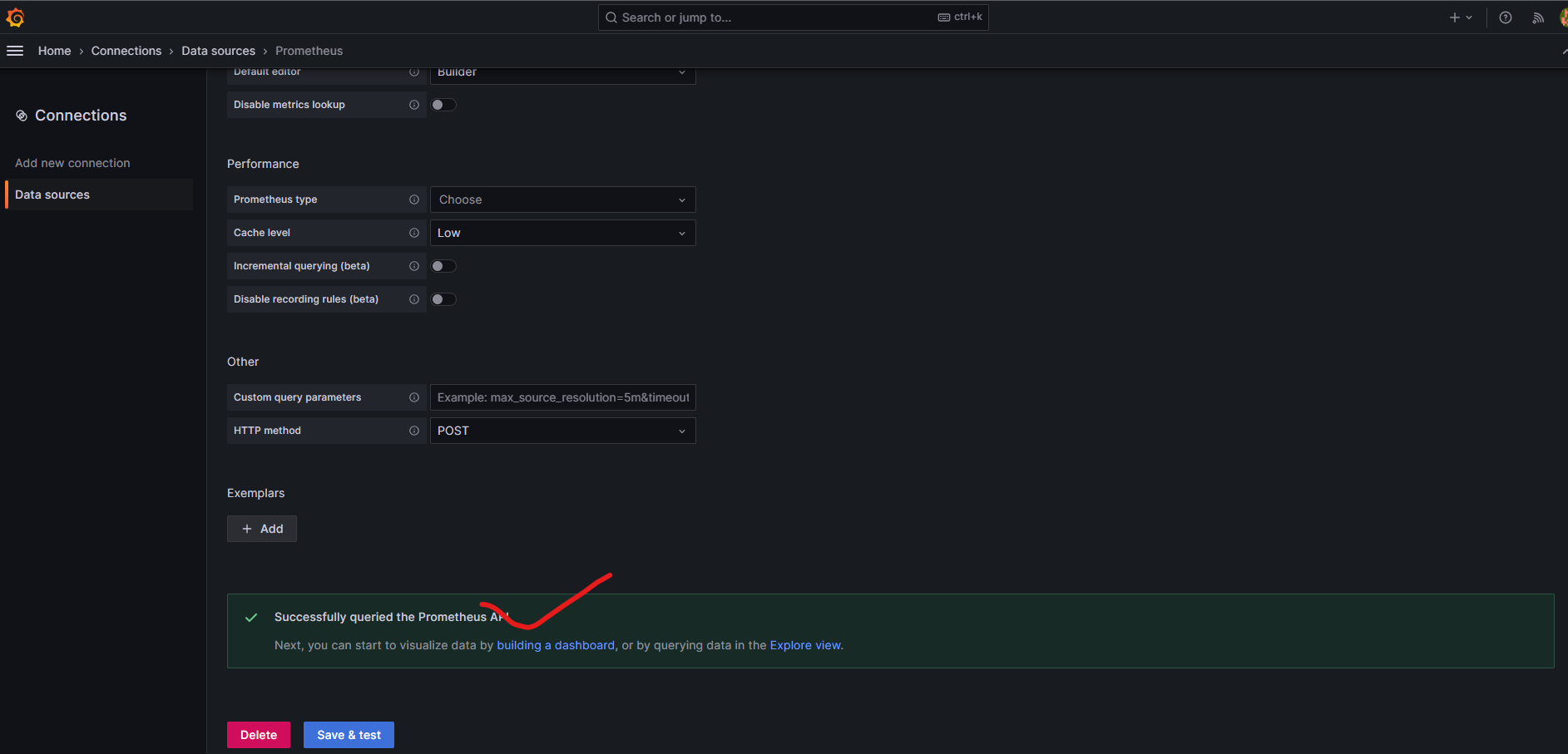

저장

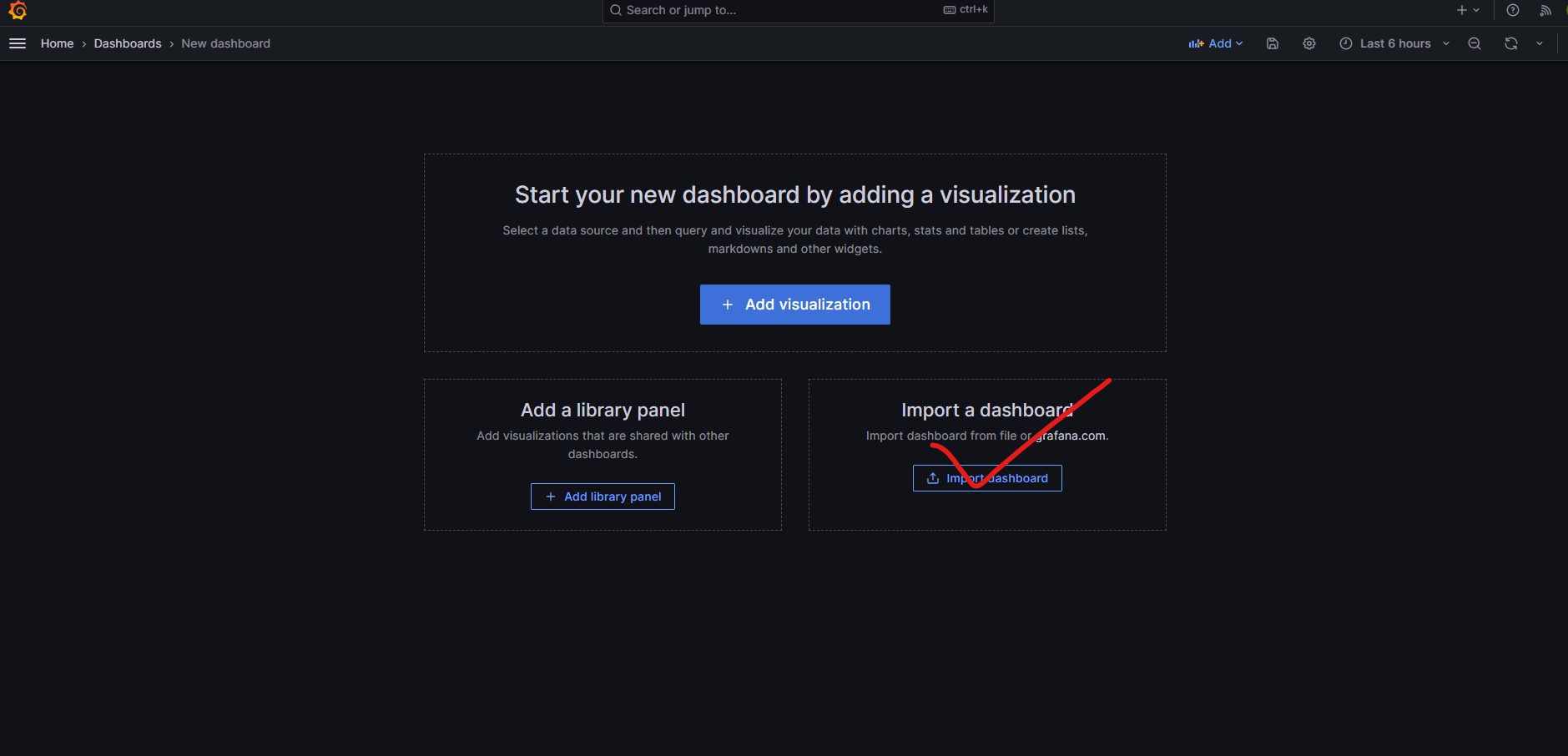

대시보드 생성



대시보드 세팅 불러오기

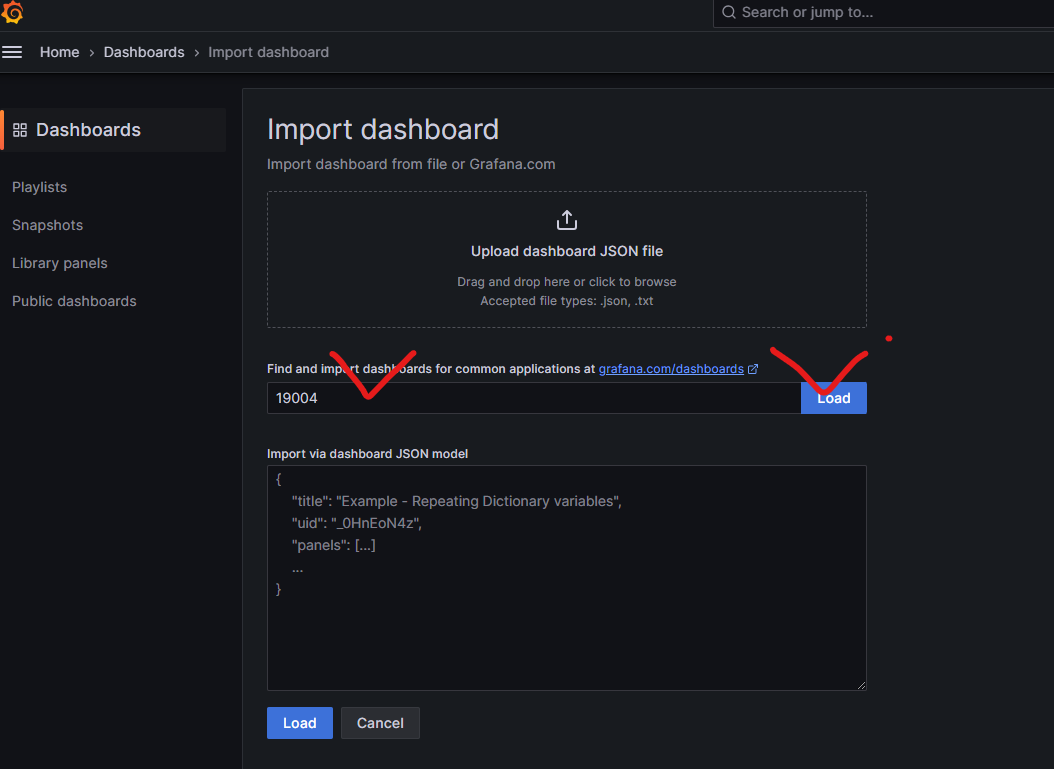

인터넷에 있는 19004 대시보드 세팅 불러오기

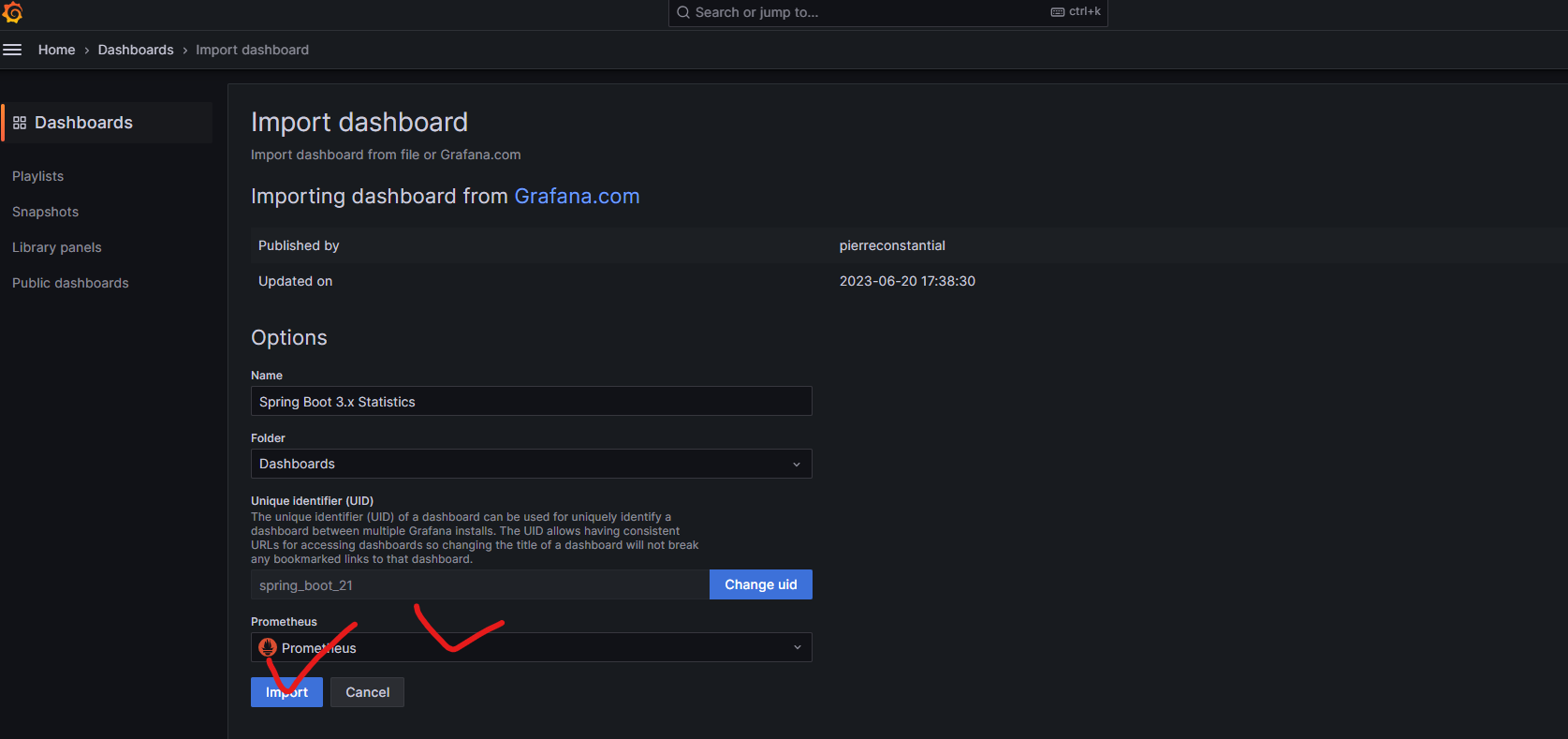

import 버튼을 눌러서 import



그라파나 설정 확인



---



집킨도 확인해 줍니다

http://localhost:9411

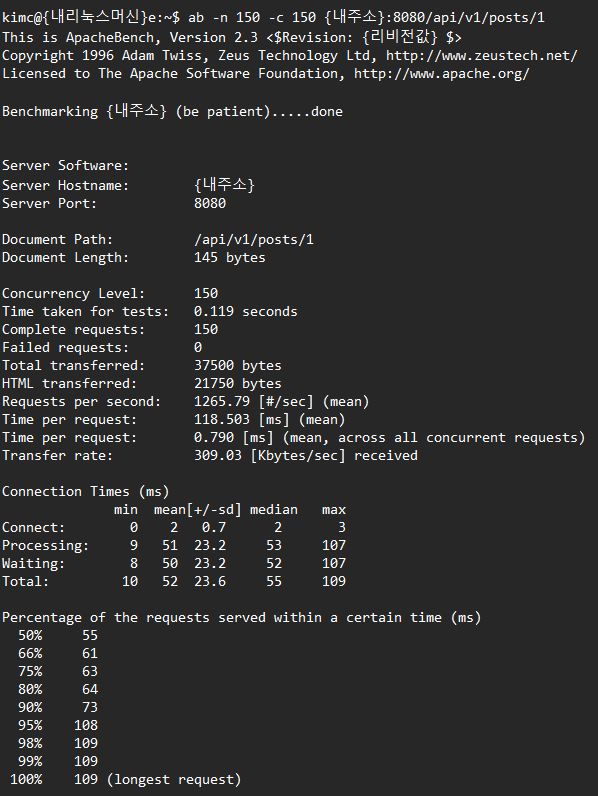

이제 커맨드 창에서 API를 호출해서 여러 가지 테스트를 해봅니다

ab -n 150 -c 150 주소/api/v1/posts/1

예) ab -n 150 -c 192.168.0.254:8080/api/v1/posts/1



API 호출한 값들을

Grafana, Zipkin을 통해 확인합니다

---

참조 및 인용

https://grafana.com/docs/grafana/latest/setup-grafana/installation/docker/

Run Grafana Docker image | Grafana documentation

https://grafana.com/docs/

Documentation | Grafana Labs

https://zipkin.io/pages/quickstart.html

Quickstart · OpenZipkin

https://prometheus.io/

Prometheus - Monitoring system & time series database

https://roqkfwkdldirl.tistory.com/91

52. docker container 만들기(zipkin, prometheus, grafana)

https://github.com/karluqs/elk-prometheus-grafana-zipkin-graylog-stack

GitHub - karluqs/elk-prometheus-grafana-zipkin-graylog-stack: ELK + Prometheus + Grafana communication POC

https://grafana.com/grafana/dashboards/19004-spring-boot-statistics/

Spring Boot 3.x Statistics | Grafana Labs





---

블로그 추천 포스트

https://codemasterkimc.tistory.com/50

300년차 개발자의 좋은 코드 5계명 (Clean Code)





오늘도 즐거운 코딩 하시길 바랍니다 ~ :)



---
